Heads: 6pcs (Automatic Nozzle Change) PCB Size: 400mm*350mm
Power Supply: AC220V (50Hz, Single Phase), 2.8kW Actual: IPC9850: 13400 CPH
Feeder: Support 50pcs YAMAHA CL Feeder / Electric Feeder Precision: (XY)±0.05mm; CPK≥1.0
Camera: 9pcs (2 Mark Cam + 6 Normal Cam + 1 IC Cam) Component Height: Max 12mm
Componnet Size Range: Min 0201 - Max Range 36*36mm Dimension: 1280*1260*1500mm
Net Weight: 670kg Nozzle: Automatic Nozzle Change With 19-hole Nozzle Library
High Light:

6 Heads SMD Pick and Place Machine

,

CHMT761P6 PCB Assembly Line

,

60 Feeders PCB Assembly Line

Charmhigh perfect 6 heads model, advanced SMT pick and place machine
High configuration Charmhigh CHM-751, updated from CHM-750. PCB mass production chip mounter

1. Model number: CHM-751
2. PCB area: 400mm(L)*350mm(W)
3. Windows system, comes with computer+mouse+keyboard
4. Component: 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
5. Lead time: 5- 7 working days
6. Delivery: by air/ sea ... or you can arrange pick up from our factory directly.
7. Payment method: T/T
8. Packing: strong plywood box


CHM-751 catalog download: CHM-751 - Catalog.pdf


Description:
CHM-751, a high-speed and good-performance 6 heads pick and place machine of Charmhigh. Its optimal mounting speed is 18400CPH.
CHM-751 Pick and Place Machine is characterized by 50 feeder stacks, 6 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders, electric feeders, stick feeders with tubular components, automatic correction to pick components, suction nozzles can be changed automatically, integrated operation with built-in industrial computer.
This model adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.

Highlights:
1. Thermal Compensation
2. Support CPK test
3. Vacuum Pump
4. Automatic nozzle change (19 sets nozzle library)
5. PCB Support Device
6. 6 head+50Yamaha feeder stacks+9cameras
7. ……
For more machine features, please consult our account manager
CHM-751 Charmhigh 6 Heads Chip Mounter Auto Nozzle Change PCB Assembly Line 0201 0
CHM-751 Charmhigh 6 Heads Chip Mounter Auto Nozzle Change PCB Assembly Line 0201 1
CHM-751 Charmhigh 6 Heads Chip Mounter Auto Nozzle Change PCB Assembly Line 0201 2
CHM-751 Charmhigh 6 Heads Chip Mounter Auto Nozzle Change PCB Assembly Line 0201 3

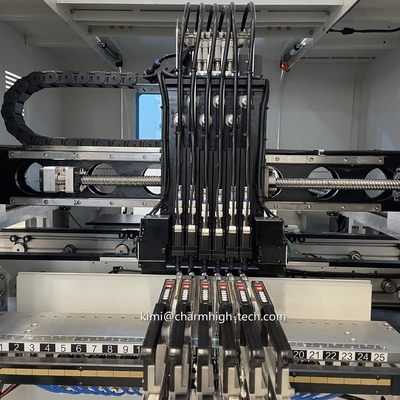

6 Heads with 50pcs feeders (Yamaha pneumatic feeder & electric feeder)
